Abstract

The aim of the study was to analyze the relationship of the kinematical factors with the ball velocity of the drag flick performance of the national elite players in field hockey. To attain this purpose, 64 drag flicks of sixteen players were recorded and analyzed through the VICON motion capture system and MATLAB software. The descriptive statistics and Spearman correlation were computed for statistical analysis. The mean ball velocity of the drag-flicks of the female and male players were 21.31±3.53 m/s and 15.10±4.02 m/s, respectively. The ball dragging length, ball dragging velocity, stance width, left-knee angle and left elbow angle had a significant correlation with the ball velocity. The subjects maximize dragging length, dragging velocity and stance width while minimizing their left-right knee angles for high velocity. Players and coaches should emphasize ball dragging length, dragging velocity and stance width to improve the drag flick performance.

Key Words

Kinematics, Ball Velocity, Drag Flick, Penalty Corner, Hockey

Introduction

Field hockey has several segments, but the penalty corner is the vital part which is considered a brilliant chance to make a goal for the win. This segment contains three specialized applications push-in, stop and drag-flick, in which drag-flick has a significant relationship with goal-scoring (Ledru et al., 2019). The drag-flick technique is recognized as the largest goal-scoring practice in field hockey and the dynamics of this technique are important in terms of performance (Bari et al., 2014). This technique needs physical fitness and the use of biomechanical skills (Sharma et al., 2012). The ball speed of the drag-flick has a strong association with the kinematical factors applied to the ball (Eskiyecek et al., 2018).

Baker et al. (2009) computed the values of ball pace through a radar gun and determined that the mean ball speed was 30.5 m/s. Husain et al. (2012) determined that values of the ball velocity for the drag-flick were 31.85±0.86 m/s amongst countrywide players and the ball pace was 30.99±4.33 m/s for individuals who had been playing at the college level.

A few research were carried out on biomechanical evaluation of drag-flick performance in field hockey (Ratko et al., 2006; Baker et al., 2009; Lopez-de-Subijana et al., 2010; Gomez et al., 2012; Verma, 2014; Bari et al., 2014; Palaniappan and Sundar, 2016; Gurol and Yilmaz, 2006; Ibrahim et al., 2016; Eskiyecek et al., 2018; Ladru et al., 2019). In those preceding research, the facts on kinematical elements of the drag-flicks of the national and global levels (Lopez-de-Subijana et al., 2010) were obtained. Therefore, biomechanical evaluation is important to discover the key mechanical functions of the physical performance of the drag flick (Gomez et al., 2012). Similarly, the attributes which include height, weight, age of the drag-flickers and their overall physiological performance, have affiliation with drag-flick performance (Verma, 2014).

The researchers recognized 4 fundamental sections of the drag-flick, technique toward the ball, touch with the ball, ball dragging, and follow-through, which affected the ball pace of the drag flick shot. It was recognized (Palaniappan and Sundar, 2016) that some biomechanical elements affected the ball pace of the drag-flick shots. It was additionally mentioned that excessive ball pace might be attained with the ball approach distance, excessive stick velocity and large ball dragging distance (Ibrahim et al., 2016). It was concluded that the elbow (angle) motion was crucial for a correct drag-flick shot (Ratko et al., 2006) and it was additionally hooked up that the extension of the elbow drastically delivered to the ball-pace of the drag-flick (Gurol and Y?lmaz, 2016).

In the foregoing studies, 2D and 3D kinematical analyses of the drag-flick overall performance were done and the kinematical statistics became received through the usage of X-sense (movement capture) Technologies. Different elements which include the ball speed, approach time on the ball, knee and elbow angles and ball dragging distance, have been analyzed with high-speed cameras and computer software (Eskiyecek et al., 2018). The body movements of the flickers have been evaluated to enhance their overall performance in competitions and the criterion for assessing the overall performance became the correct drag-flick with high ball speed. A better knee extension speed contributed to better ball speed among elite players (Ladru et al., 2019).

The previous research work instigated the researcher to investigate the association of the kinematical factors with drag flick performance in field hockey among the national elite players in Pakistan.

Consideration of the kinematics of a drag flick may be beneficial to enhance the overall performance of the national drag flickers (Augustus et al., 2007). If the country-wide elite players and coaches have information about the scientific relationship of the chosen kinematical elements with the ball speed in drag flick performance, then they are able to carry out or teach better. Therefore, the objective of the current study was to decide that kinematical factors of drag-flick have a significant connection with the ball speed.

Methods

Participants

This study was carried out on eight male and eight female national elite players. The ages of the players were from 15 to 21 years. They had at least one year of playing experience at the National or International level and they participated voluntarily. All the participants had not undergone any professional training regarding the drag flick. They were all informed about the study, their consent was obtained, and all had no medical fitness issues.




Measures

Keeping in view the cited research work, the researcher adapted the 3D videography kinematic methodology to obtain the kinematical factors of the drag flick through the VIVON motion capturing system in the Biomechanics Laboratory at Lahore University of Management Sciences (LUMS), Lahore. All players used their standardized sticks with proper kits and performed drag-flick after the proper warm-up. A single standardized field hockey ball weighing156-163 gm with a diameter of 12.5cm and with the reflectors was used. Fourteen markers were placed on the players' bodies: toes of shoes; lateral malleolus on the ankles; patella lateral on the knees; trochanter major at the hips; medial-styloid on wrists; olecranon on elbows and acromion on shoulders. Two markers were also placed on the hockey stick: on the head and the handle.

The measurements of the drag-flicks were recorded with a VICON (Nexus 2.8.2) motion capturing system with sixteen cameras. Fourteen infra-red (IR) cameras (Basler Pi A640-210GC) with a 250hz frame rate and two high-speed video cameras (YCON MxF20) with 125hz frame per second were utilized. IR cameras were utilized to capture the kinematic factors of the player, hockey stick and the ball through reflectors and markers. MATLAB software was used for data capturing, labeling, and filtering. All drag-flicks were performed with a stationary ball position at a half foot away from the circle line in front of the goal post without a goalkeeper. Each drag-flicker performed five to seven drag flicks but his four best drag flicks were used for statistical analysis.

In this study, kinematic measurements were recorded from the starting phase to the follow-through phase. The approach distance was measured manually; drag length, drag time, drag velocity, stance width, and the ball velocity were computed from the VICON motion capturing system and MATLAB software. The average knee and elbow angles were also computed from the VICON system, taken on from the start dragging to end dragging based on camera frame rate.




Statistical Analysis

The mean, the standard deviation and bar charts were accustomed to exploring the selected variables and Spearman rho correlation was calculated to measure the direction and the relationship of kinematical variables with ball velocity.

Results

The mean ages of the female and male players were 19.63± 1.90 and 20.25± 0.80 years, respectively; the mean weights of the female and male players were 49.00 ± 4.19 kg and 66.38 ± 4.92 kg, respectively; and the mean heights of the female and male players were 149.91± 8.23 cm and 163.19 ± 7.57 cm, respectively as described in Table 1. The mean ball velocity for the combined group was 18.20±4.89 m/s, for the female group, it was 15.10±4.02 m/s and for male players, it was 21.31±3.53 m/s. These calculated ball velocities were less compared to Baker et al. (2009) computed the average ball velocity (30.5 m/s) and it was described that the mean ball velocity of the drag-flick was 31.85±0.86 m/s among college players (Husain et al., 2012). It showed that the national elite players had lower performance in drag flick as compared to other international players. Similarly, the same statistics for the kinematical factors were computed and listed in Table 1.






Table 1. The Mean & the Standard Deviation (SD) Values of the Selected Variables

Variables	Combine Group	Female Group	Male Group
	Mean ± SD	Mean ± SD	Mean ± SD
Age (Years)	19.94±1.48	19.63±1.9	20.25±0.80
Weight (kg)	57.69±9.86	49.00±4.19	66.38±4.92
Height (m)	156.55±10.31	149.91±8.23	163.19±7.57
Experience (Years)	4.59±0.95	4.94±1.03	4.25±0.72
Ball Velocity (m/s)	18.20±4.89	15.10 ±4.02	21.31±3.53
Approach Distance(m)	2.89±0.42	2.72±0.38	3.05±0.40
Drag Length (m)	1.79±0.47	1.42±0.33	2.15±0.26
Drag Time (sec)	0.35±0.08	0.31±0.09	0.39±0.05
Drag Velocity (m/s)	5.16±0.97	4.69±1.04	5.64±0.61
Stance Width (m)	1.21±0.18	1.14±0.15	1.27±0.19
Left Knee Angle (o)	52.98±16.33	54.75±17.42	51.20±15.23
Right Knee Angle (o)	58.98±14.07	62.18±15.24	55.78±12.2
Right Elbow Angle (o)	54.03±9.48	55.28±13.33	52.78±4.0
Left Elbow Angle (o)	64.45±10.43	70.43±11.5	58.47±3.87

Number of Players =16, Number of Drag-flicks, Combined Group=64; Female Group=32; Male Group=32




From Table 2, correlation coefficients for combined group, the ball velocity had significant (p<0.05) correlation with drag-length (r = 0.680), drag velocity (r = 0.630), stance width  (r = 0.540), left knee angle (r = -0.350),  right knee angle (r = -0.372), left elbow angle (r = - 0.471), age (r = -0.350), weight (r = 0.310) and height (r = 0.363) but with approach distance (r = -0.110), drag time (r = 0.230) and right elbow angle (r = -0.022)  it had insignificant correlation. The drag length, drag time, drag velocity, stance width, weight and height had positive correlation with the ball velocity while approach distance, left-right knee angles, left-right elbow angles and age had negative correlation with the ball velocity as shown in

The same table shows the correlation coefficients for female group, the ball velocity had significant (p < 0.05) correlation with drag-length (r = 0.471), left knee angle (r = 0.432), right knee angle (r = 0.380), age ( r = -0.690), weight (r = 0.691) and height (r = 0.732, p < 0.01) while it had insignificant correlation with approach distance, drag time, drag velocity, stance width and right-left elbow angles. The drag length, drag time, drag velocity and left-right elbow angles had a positive correlation with the ball velocity while approach distance, stance width, left-right knee angles, age weight and height had an inverse correlation with the ball velocity, as shown in Figure 2.

Table 2 also shows the correlation coefficients for male group, the ball velocity had significant correlation with approach distance (r=-0.85, p<0.01), drag velocity (r = 0.78, p<0.01), stance width  (r=0.58, p<0.01), left knee angle (r=-0.52, p<0.01), left elbow angle (r=-0.48, p<0.01), weight (r=-0.46, p<0.01) and height (r=0.70, p<0.01), while it had non-significant correlation with drag length, drag time, right knee angle, right elbow angle and age. The drag length, drag velocity, stance width, right elbow angle and height had positive while approach distance, drag time, left-right knee angles, left-elbow angles, age and weight had an inverse correlation with the ball velocity, as shown in Figure 3.

Figure 1

Bar Chart of Spearman rho Correlation Coefficients between the Ball Velocity & Kinematical Variables (Combine Group)






Figure 2

Figure 2: Bar Chart of Spearman rho Correlation Coefficients between the Ball Velocity & Kinematical Variables (Female Group)

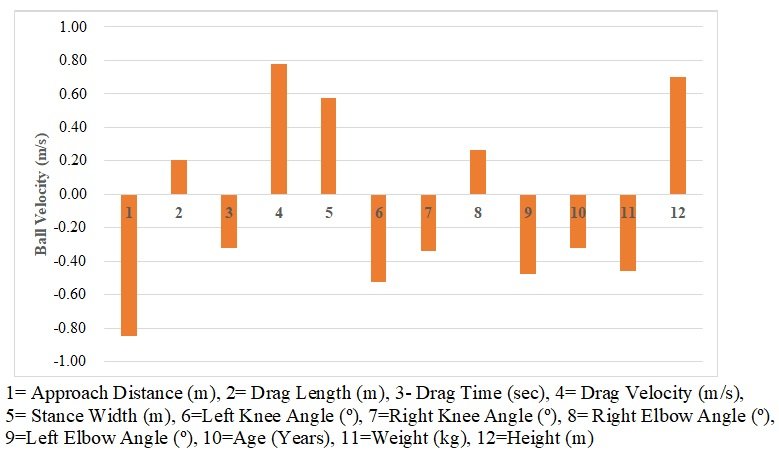

Figure 3

Figure 3: Bar Chart of Spearman rho Correlation Coefficients between the Ball Velocity & Kinematical Variables (Male Group)






Table 2

Spearman rho Correlation Coefficients between Ball Velocity & Kinematical Variables

Variables	Ball Velocity (m/s)
	Combined Group	Female Group	Male Group
Approach Distance (m)	-0.11	-0.07	-0.85
Drag Length (m)	0.68**	0.47**	0.20
Drag Time (sec)	0.23	0.16	-0.32
Drag Velocity (m/s)	0.63**	0.18	0.78**
Stance Width (m)	0.54**	- 0.09	0.58**
Left Knee Angle (o)	-0.35**	-0.43*	-.52**
Right Knee Angle (o)	-0.37**	-0.38*	-0.34
Right Elbow Angle (o)	-0.02	0.27	0.27
Left Elbow Angle (o)	-0.47**	0.11	-0.49**
Age (Years)	-0.35**	-0.69**	- 0.32
Weight (kg)	0.31*	-0.69**	-0.46**
Height (m)	0.36**	-0.73**	0.70**

Discussion

The main purpose of the current study was to quantify the use of biomechanical skills of elite hockey players, and to examine the relationship between biomechanical factors and anthropometric variables with drag-flick performance. To obtain this purpose, sixteen hockey players were selected from well-known hockey clubs, including National Hockey Camp, in Lahore, Pakistan. All the players participated voluntarily.

Non-parametric Spearman rho correlation coefficients showed that the ball velocity (drag flick performance) had a significant correlation with kinematical factors of the drag flick and anthropometric attributes of the flickers. Ladru et al. (2019) conducted a study to analyze the relationship of ball speed with the maximum angular velocity of knee extension and maximum knee angle in elite drag flickers. The data of biomechanical variables were recorded 240Hz by using (motion capture) X-sense Technologies. They found positive and signi?cant associations between ball speed and angular velocity of knee extension.

Ibrahim et al. (2016) carried out a study on 10 players. They utilized 150Hz marker movement analysis and 2 (force) plates to detect the foot touch. They analyzed angular speed and involvement of upper body joints toward the speed of the stick (blade). They discovered that trunk axial rotation, right wrist flexion, and left wrist extension were the principal members to the stick speed. Ultimately, the stick speed resulted in the ball speed of the drag-flick. The present study indicated that ball speed had a significant affiliation with left-right knees angle and left elbow angle.

Verma (2014) found the contribution of physical attributes to drag-flick performance. Their study variables were back strength, shoulder strength, grip strength, back flexibility, and leg strength as independent variables. He discovered that the physical variables such as arm, shoulder, and grip strength significantly contributed towards drag-flick performance. In the current study, it was observed that weight and height had a positive and significant correlation with ball velocity.

Franklin and Rajinikumar (2014) worked on five male drag-flick experts of ages 18 to 30 years. The results of their study showed that the mean ball velocity was 28.92±0.09 m/s and the drag length mean 2.25±0.07 meters. They found that there was a significant (r=0.877, p<0.05) correlation between ball velocity and drag length. The present study described that the mean age of the male players was 20.25±0.80 years, the average drag length was 2.15±0.26 m and the mean ball velocity of drag-flick was 21.31±3.53 m/s. Ball velocity had a significant (r=0.68, p<0.01) and positive correlation with drag length.

Ansari et al. (2014) found that the ball velocity had a significant correlation with elbow angle in the contact phase while the knee angle in the release phase. They also reported that there was an insignificant effect of the elbow and pelvic segments on the ball velocity. The current study found that the ball velocity of drag-flick of the national players had significant and negative correlations with left-right knee angles and left elbow angle.

Bari et al. (2014) significant correlation of ball velocity with dragging distance and shoulder orientation. The current study found that the ball velocity had a significant correlation with dragging length, dragging velocity, stance width and left elbow angle.

Average ball velocity by a radar gun was computed at 30.5m/s (Baker et al., 2009) and Husain et al. (2012) calculated 31.85±0.86 m/s among the players at the national level. The current study measured the ball velocity of National level players, the average ball velocities of male and female flickers were 21.31± 3.53 m/s and 15.10± 4.02 m/s, respectively.

It was reported (Ratko et al., 2006) that the movement of the elbow was important for an accurate drag-flick shot. It was also established that the extension of the elbow significantly added to the ball velocity during the execution of drag-flick (Gurol and Yilmaz, 2016). The current study found that left elbow angle and left-right knee angles had a significant association with ball velocity during the execution of drag flick.

Ansari et al. (2014) reported that the drag distance had a significant influence on the drag-flick performance. It was concluded that the larger the drag length the higher the ball velocity. The current research work established that the ball velocity had a significant and positive correlation with dragging length.

Lopez de Subijana et al. (2011) conducted a study on a single male Spanish drag-flicker. The age of drag-flicker was 19 years old; his weight was 66.8 kg and his height was 171cm, and he had eight years of experience in field hockey and they reached a ball velocity of 24.9 ± 0.9 m/s. In the present study, the average age, weight, and height of the male players were 20.25±0.80 years, 66.38±4.92 kg, and 163.19±7.57 m, respectively, and they had 4.25±0.72 years of playing experience. Their average ball velocity in drag-flicks was recorded at 21.31±3.53 m/s. A player from National Junior Hockey Camp attained the ball velocity up to 27.32 m/s, but on average, he achieved the ball velocity up to 24.10±1.30 m/s.

Conclusion and Recommendations

The drag-flick performance had a significant association with the kinematical factors of the drag flick and anthropometric attributes of the flickers. The ball velocity can be increased by increasing the dragging length, dragging velocity, and stance width and by decreasing the left-right knee angles. Players and coaches should pay attention to drag length, darg velocity and stance width for excellent performance in drag-flick.

References

• Ansari, N. W., Bari, M. A., Hussain, I., & Ahmad, F. (2014). Three-dimensional kinematic analysis of the drag flick for accuracy. Journal of Applied Sciences and Engineering Research, 3(2), 431-435.
• Augustus, S., Mundy, P., & Smith, N. (2007). Support leg action can contribute to maximal instep soccer kick performance: An intervention study. Journal of Sports Sciences, 35(1), 89–98.
• Anderson, J. (2009). The influence of processing time on expert anticipation. Int. J. Sport Psychol, 40, 476-488.
• Bari, M. A., Ansari, N. W., Hussain, I., Ahmad, F., & Ali Khan, M. A. (2014). Three-dimensional analysis of variation between successful and unsuccessful drag-flick techniques in field hockey. International Journal of Research Studies in Science, Engineering, and Technology [IJRSSET], May, 1(2), 74-78.
• Eskiyecek, C. G., Bingül, B. M., Bulgan, C., & Aydın, M. (2018). 3d biomechanical analysis of targeted and non-targeted drag-flick shooting technique in field hockey. ActaKinesiological, 2(12), 13-19.
• Palaniappan, R., &Viswanath, S. (2018). Biomechanical Analysis of Penalty Corner Drag-Flick in Field Hockey. ISBS Proceedings Archive, 36(1), 690.
• Gürol, B., Yılmaz, Ä°. (2016). Kinematic Analysis of Free Through. IU journal of Sports Sciences, 6(4), 1303-1414.
• Gómez, M., De Subijana, C. L., Antonio, R., & Navarro, E. (2012). The kinematic pattern of the drag-flick: a case study. Journal of human kinetics, 35, 27.
• Hassan, R. S. S. (2010). Biomechanical Indicators Contribution Ratios of the Ball Velocity in Aiming for the Skill of Ball Hitting in Field Hockey. World Journal of Sport Sciences 3. Egypt: IDOSI Publications, 258-263.
• Hussain, I., Ahmed, S., & Khan, S. (2012). Biomechanical study on drag-flick in field hockey. International Journal Behavioral Social Mvt Sciences, 1(3), 186-193.
• Hussain, I., Mohammad, A., Khan, A., Bari, M. A., Ahmad, A., & Ahmad, S. (2011). Penalty stroke in field hockey: A biomechanical study. International Journal of Sports Science and Engineering, 5(1), 53-57.
• Ibrahim, R., Faber, G. S., Kingma, I., & van Dieën, J. H. (2017). Kinematic analysis of the drag flick in field hockey. Sports biomechanics, 16(1), 45-57.
• Ladru, B. J., Langhout, R., Veeger, D. J., Gijssel, M., &Tak, I. (2019). Lead knee extension contributes to drag-flick performance in field hockey. International Journal of Performance Analysis in Sport, 19(4), 556-566.
